Stainless steel remedial wall ties for a resin grouted fix

Price excl. VAT
Price incl. VAT
(Out of stock)

Resin-grouted stainless steel replacement wall tie with continuous helical flutes. Slim 5mm diameter permits maximum flexibilty whilst the deep helix offers superior keying with resins or grouts for wall tie replacement in brickwork.

Though care is needed to ensure holes are cleared of bore dust, these spiral fixings are remarkably tolerant to both hole size and host material variations. Resin grouted wall ties are suitable for use in all normal domestic situations same for fire resistance requirements of greater than half-an-hour. Ref: BRE Digest 329

Resin grouted stainless steel wall ties are sold in packs of 250
205mm ties - 50mm cavity
230mm ties - 75mm cavity
255mm ties - 100mm cavity

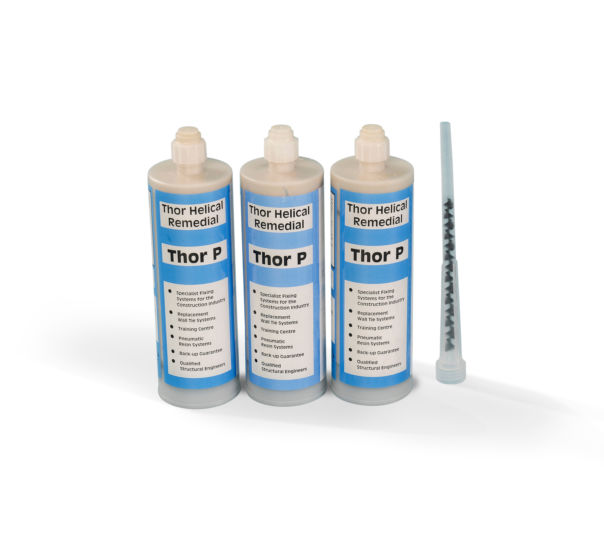

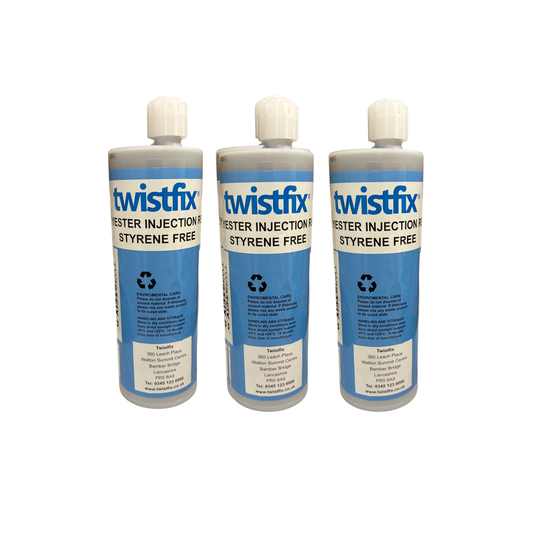

For fixing these stainless steel ties ties you need a 10mm SDS drill bits, blow pump, polyester or epoxy resin & an applicator gun
